Advanced Student or Instructor Grade Brightfield Metallurgical Microscope

Regular price
$5,490.00
Regular price
$6,100.00
Sale price
$5,490.00
Unit price
per
Availability
Sold out
SKU: MT7000L

1-2 weeks

Description/Detail

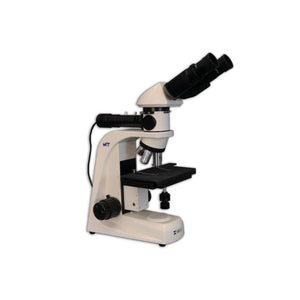

  • Meiji Techno's new upright Brightfield incident light metallurgical microscope is the new and cost-effective MT7000 Series Microscope. The MT7000 Series employs all new and improved optics.
  • Meiji Techno's ICOS™ (Infinity Corrected Optical System) makes the observation and evaluation of metallurgical specimens fast and easy while delivering an excellent cost-to-performance ratio.

    Detailed Specifications:
    1. Binocular Compound Metallurgical Microscope with Vertical Koehler LED Incident (Reflected) light observation and Infinity Corrected Optical System.
    2. Binocular head-Siedentopf type, Interpupillary Diameter adjustment 53mm to 75m, graduated diopter on left eyetube (30.0mm I.D.eyetube). Inclined at 30 degrees.
    3. SWH10X Widefield high eyepoint eyepiece, Field No. 22, tube O.D. 30.0 mm.
    4. Plan Epi Objective 5X, N.A.0.10, W.D. 20.0 mm, F.N.24, 10X, N.A. 0.25, W.D. 7.48 mm, F.N. 24, 20X, N.A. 0.40,
    5. W.D. 5.20 mm, F.N. 24, 50X, N.A. 0.75, W.D. 0.38 mm, F.N. 24.
    6. Blue clear filter, 19.5mm diameter filter in metal mount, fits 25mm filter slot.
    7. N.D.50 neutral density filter, 19.5 mm diameter filter in metal mount, fits 25 mm filter slot
    8. Polarizing filter, 19.5mm diameter filter in metal mount, fits 25mm filter slot.
    9. Ceramic coated flat-top stage, 191mm X 126 mm, 100mm X 100mm X-Y movement, with right hand drop-down coaxial controls.
    10. 5W LED Bulb for LED illuminator (Factory Installed).
    11. Rubber Eyeshield for MA817 SWH10X eyepiece.
    12. Dust cover for all MT7000 Series microscope.
  • Trinocular, ergonomic, and brightfield/darkfield version available Please Contact Us
  • Installation Guide

    Dust Cover Included
    Eyepieces 5x, 10x, 20x, 50x
    Head Style Binocular
    Illuminator Bright LED Illuminator
    X/Y Stage X/Y Stage
